Iter: Modularity at the heart of robotics design

Virtual Reality Robotics Electronics

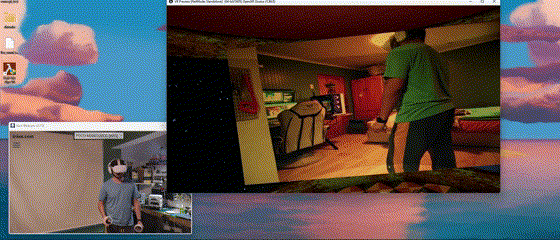

Iter is a robot designed to be as modular as possible, both in terms of software and hardware. With dedicated swappable modules for each task according to the requirements that may arise. When communicating with external devices, it uses a Python-based API. It is controlled through a VR interface for Oculus Quest 2, connected to the robot using the same API.

Check the GitHub here!

The Problem

After completing my university education, I no longer had access to the robotics laboratory I was once a part of. However, I had a strong desire to continue my robotics experiments and conduct home-made research. To fulfill this aspiration, I needed a robot that would serve as a platform for my experiments. The robot had to be flexible enough to accommodate different components based on the requirements of each experiment. For example, if I wanted to test a navigation algorithm, I needed a module with wheels. If I aimed to capture a panoramic view of the robot's surroundings, I required a module equipped with multiple webcams. The idea was to have the ability to customize the robot based on specific experiment needs. However, this was just one aspect of the problem - the hardware and design. Simultaneously, it was crucial to have versatile and scalable software that could incorporate new features upon request and establish connections with various devices. This software would serve as the backbone, enabling the robot to adapt and expand its capabilities as needed. In summary, the challenge encompassed two key components: the flexible hardware/design to support diverse experiment requirements and a versatile software system capable of accommodating new features and interacting with different devices.

Starting the right way

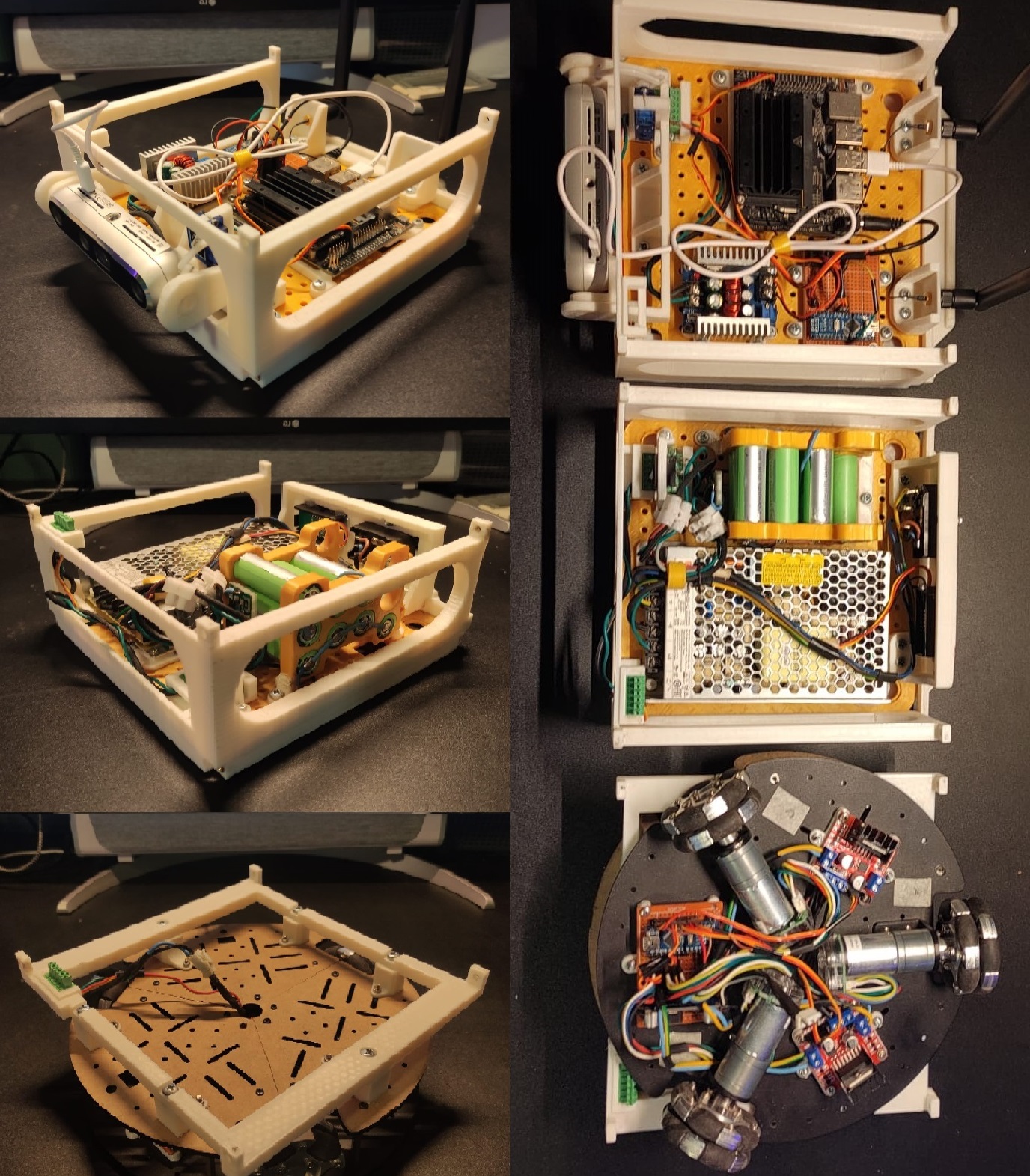

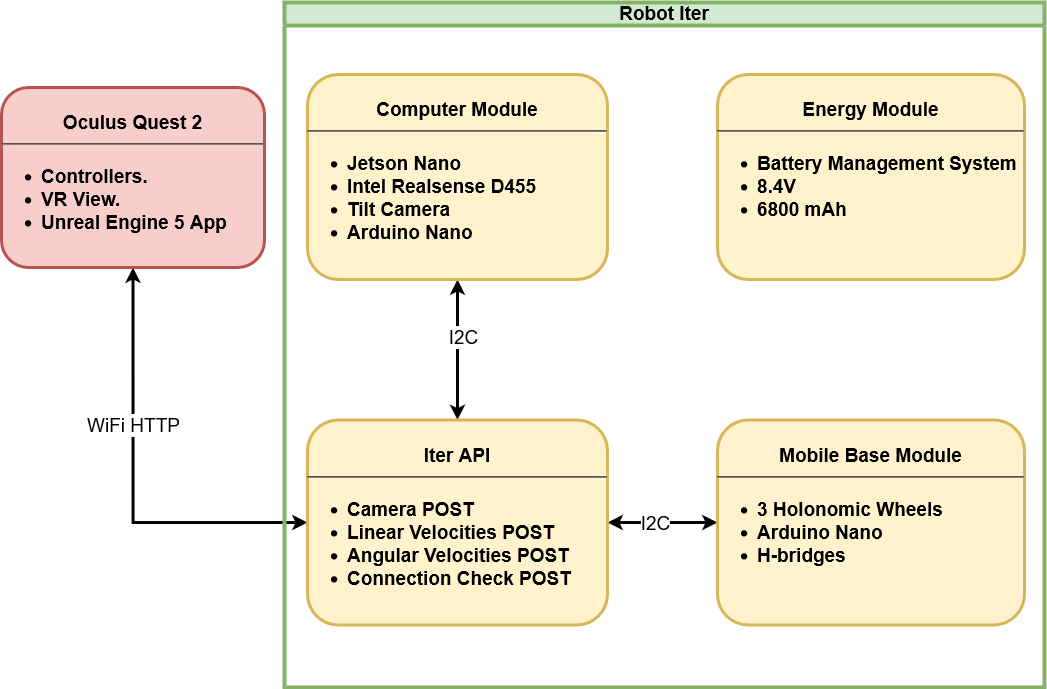

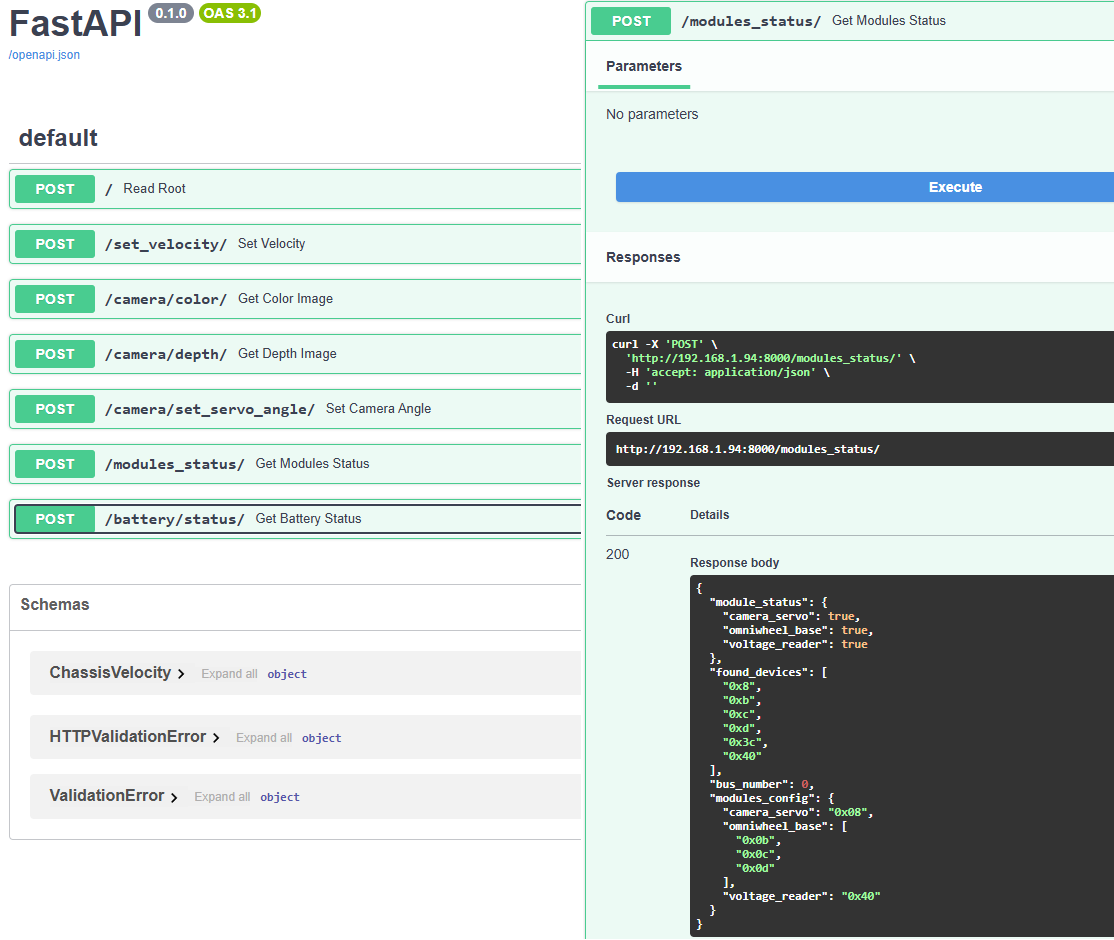

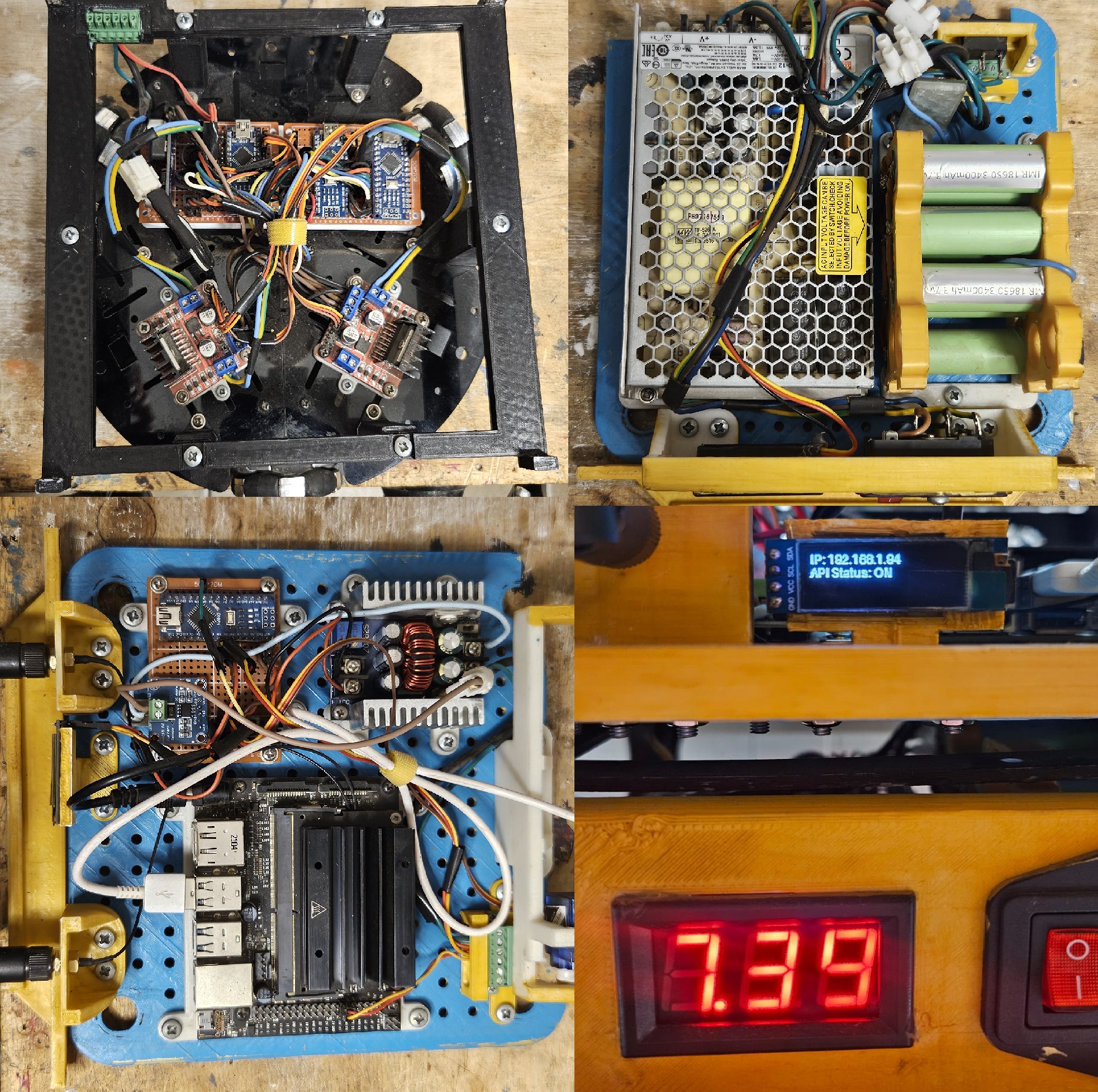

The robot structure is modular, consisting of different modules that contribute to the overall characteristics of the robot. For instance, the vanilla version includes a holonomic mobile base, a power supply module for distributing energy to all parts of the robot, and a processing module. This one is equipped with a Jetson Nano and an Intel RealSense D455 RGB-D camera. However, it is entirely possible to switch out the wheels for legs or add an arm module with minimal effort. This flexibility is made possible by utilizing I2C communication between the modules. Each unit is connected through four cables: two for power supply and two for communication. Each module incorporates either a microprocessor, such as an Arduino board or an ESP32, or a microcomputer, such as a Jetson or a Raspberry Pi. The software follows a similar modular structure, enabling seamless interconnection between different types of devices. The robot utilizes a Python HTTP API, where each function can be wrapped in a dynamic GET/POST format. This approach simplifies and accelerates the addition of different functions, allowing for further development and customization. The robot's controller is an Oculus Quest 2 VR headset. Thanks to the Python API, the headset can be linked to the robot through an application developed in Unreal Engine 5, which supports HTTP communication.

VR controller, a good match

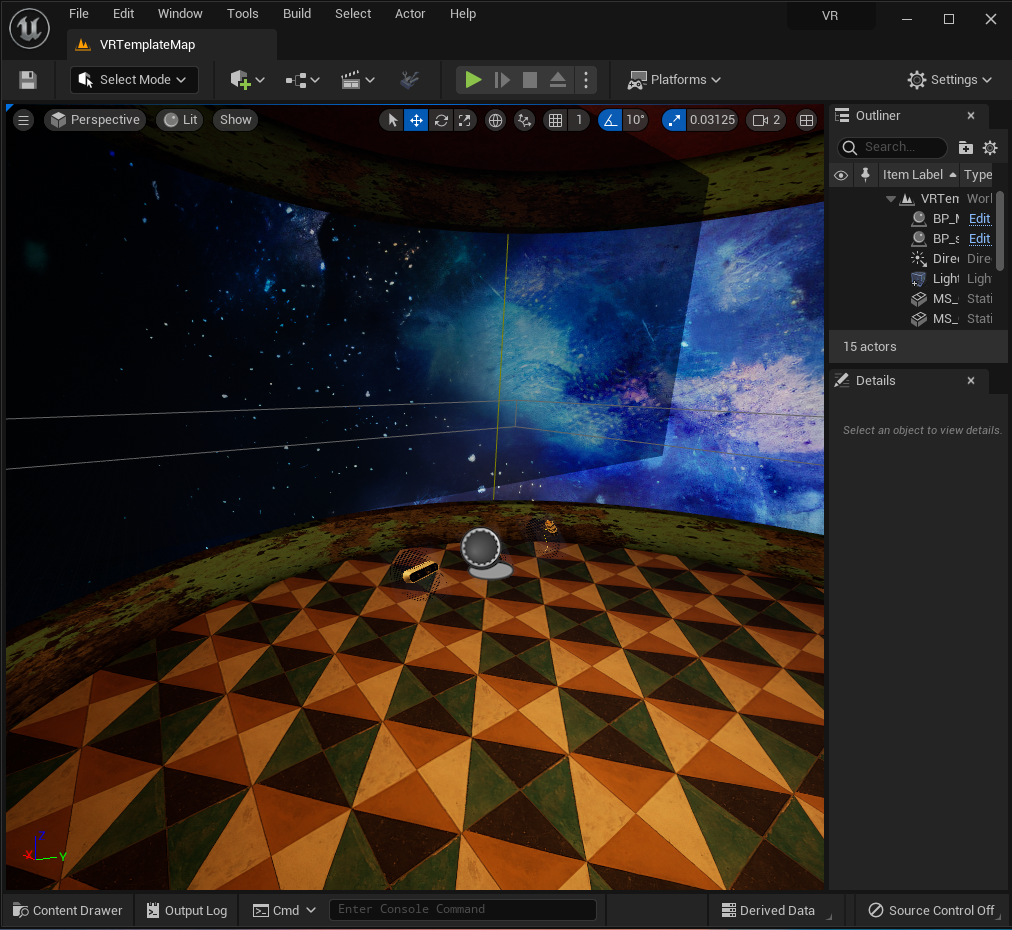

Using a VR headset as the controller for a modular robot offers several notable benefits. The immersive nature of virtual reality enhances the user experience by providing a more intuitive and immersive way to interact with the robot. Users can have a first-person perspective, seeing the robot's surroundings as if they were inside it, which facilitates better spatial awareness. The flexibility of a VR headset as a controller enables easy integration with the modular robot. By leveraging a Python API and an application developed in Unreal Engine 5, the VR headset can be seamlessly linked to the robot. This integration empowers users to control and interact with the robot remotely, leveraging the full capabilities of the VR headset while maintaining a strong connection to the robot's functionalities. It facilitates the creation of interfaces and high-level control.

Project outcomes

Overall, the Iter fulfills its purpose. It is now a modular and scalable robot with a fast and easy system for adding or removing any feature. Its size allows me to save money on the structure, enabling me to focus my efforts on software and module design. While a Jetson Nano may not be capable of running resource-intensive AI applications, it is feasible to offload heavy processing to a desktop computer using its API. Furthermore, with the availability of 5 GHz Wi-Fi, all data can be transmitted in real-time, enabling timely decision-making.

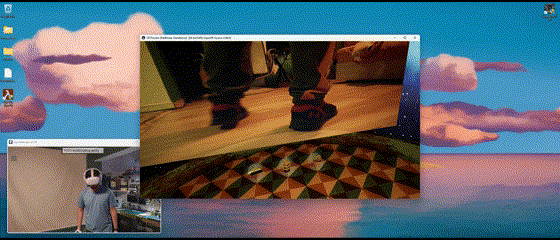

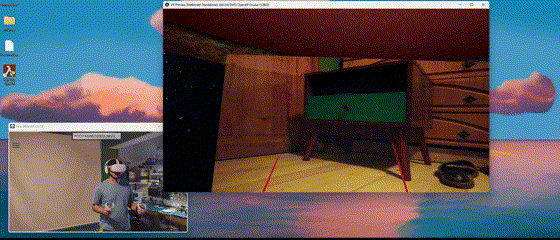

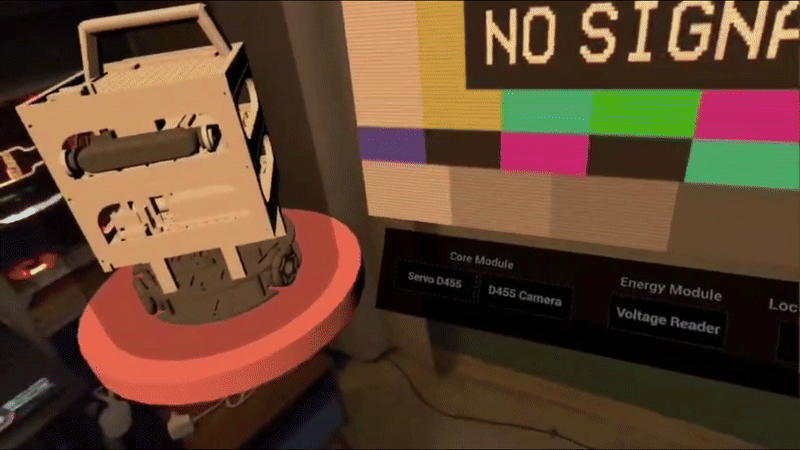

A VR controller offers tremendous advantages in the field of robotics, extending beyond its association with sci-fi animations. Its versatility lies in the ability to create tailored virtual environments for a wide range of applications. Whether it involves manipulating giant virtual screens or designing custom user interfaces, the possibilities are truly boundless. One of the key benefits of employing a VR controller in robotics is enhanced teleoperation and interaction. By utilizing a VR headset along with controllers or hand tracking, operators can seamlessly maneuver and control robots within the virtual environment. This immersive experience not only adds a sense of realism but also provides an intuitive and natural way of interfacing with the robotic system. Moreover, the virtual nature of the environment opens up new avenues for training and simulation. Users can recreate real-world scenarios, test different control strategies, and experiment with complex tasks without any risk of physical damage. This virtual playground enables rapid prototyping, iterative design improvements, and exploration of various robot configurations and functionalities.
